Cummins Replacement Hex Flange Head Cap Screw Set For Cooling Fan Pulley on the 2003 to 2026 Model Ram trucks with Cummins 5.9L or 6.7L Turbo Diesel

DODGE RAM CUMMINS 5.9L and 6.7L TURBO DIESEL FAN PULLEY ASSEMBLY HEX FLANGE BOLT KIT CONTAINING SIX BOLTS IS IN STOCK AND READY FOR IMMEDIATE SHIPMENT

The Genuine Cummins part Applications:

• 2013 to 2026 Model Ram 2500, 3500, 4500, and 5500 series 2WD and 4WD trucks with the 6.7L ISB Cummins.
• 2007.5 to 2012 Model Dodge Ram 2500, 3500, 4500, and 5500 series 2WD and 4WD trucks with the 6.7L ISB Cummins.
• 2003 to 2007 Model Dodge Ram 2500, and 3500 series 2WD and 4WD trucks with the 5.9L ISB Cummins.

If you own a 2003 to 2026 Dodge Ram powered by the 5.9L or 6.7L Cummins Turbo Diesel engine, the Fan cover or cover fan can cause a problem. If you need to replace the pulley attached to the Fan cover, we recommend replacing the six bolts used to mount the pulley.

This OEM Mopar 4886003AA Cooling Fan Pulley Mounting Bolt Kit Cross References:

• Cummins 4325243

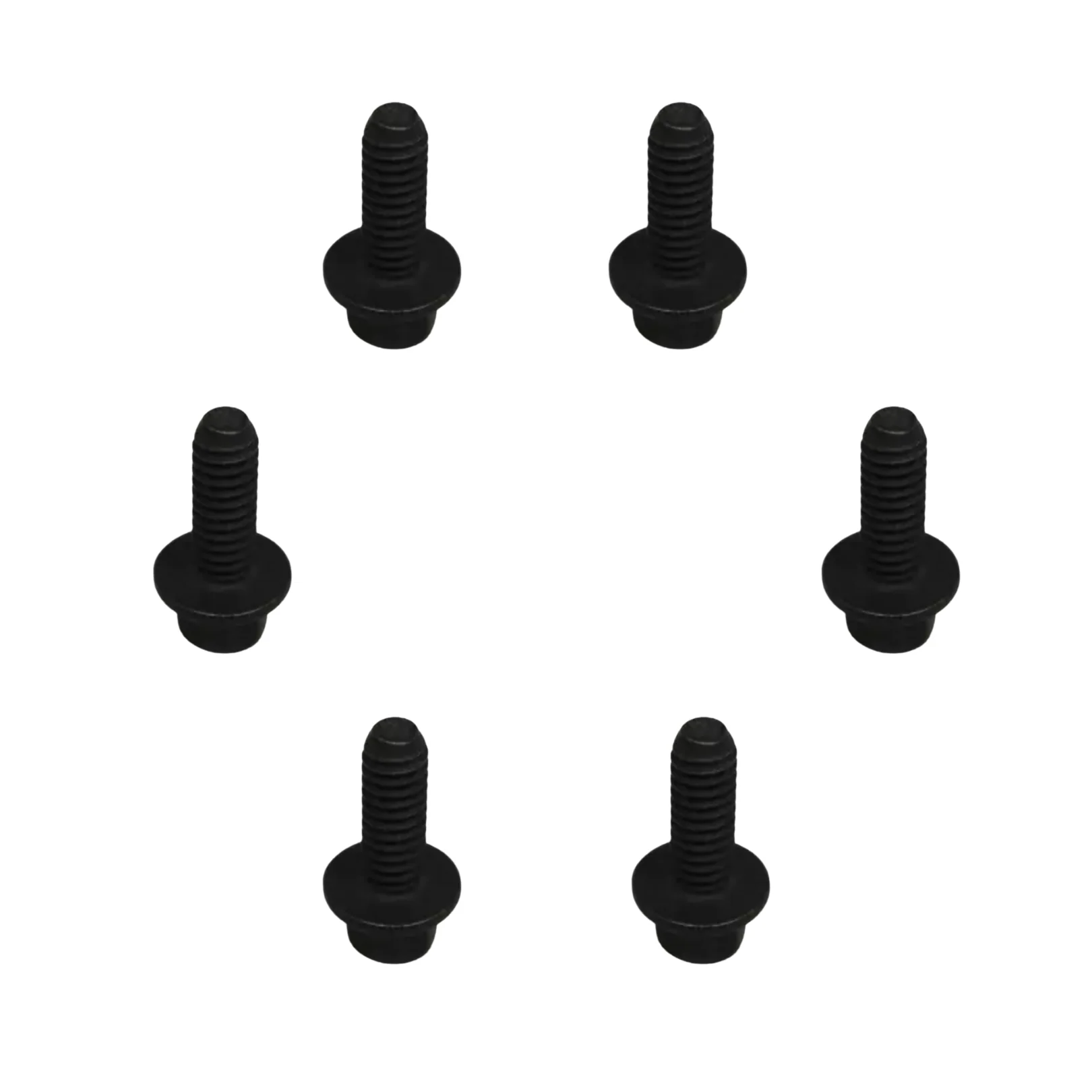

The Mopar 4886003AA Hex Flange Head Bolt Kit includes the Six Cummins Hexagon Flange Head Cap Screw (part number 4325243), engineered to ensure precise fit and alignment across multiple engine models. This six-bolt kit is essential for maintaining secure connections within the engine’s mounting system, specifically between the pulley and cover fan mount, promoting structural stability and reliable performance under demanding conditions.

Hex Flange Head Bolt Mounting Kit specifications:

• These are single-use torque-to-yield fasteners, which Mopar recommends replacing during service.
• Part Number: 4325243-6
• This Kit contains the required Six Bolts
• Fastener Type: Screw, Hex flange head bolt / Head Cap with an integrated washer-like flange for better load distribution

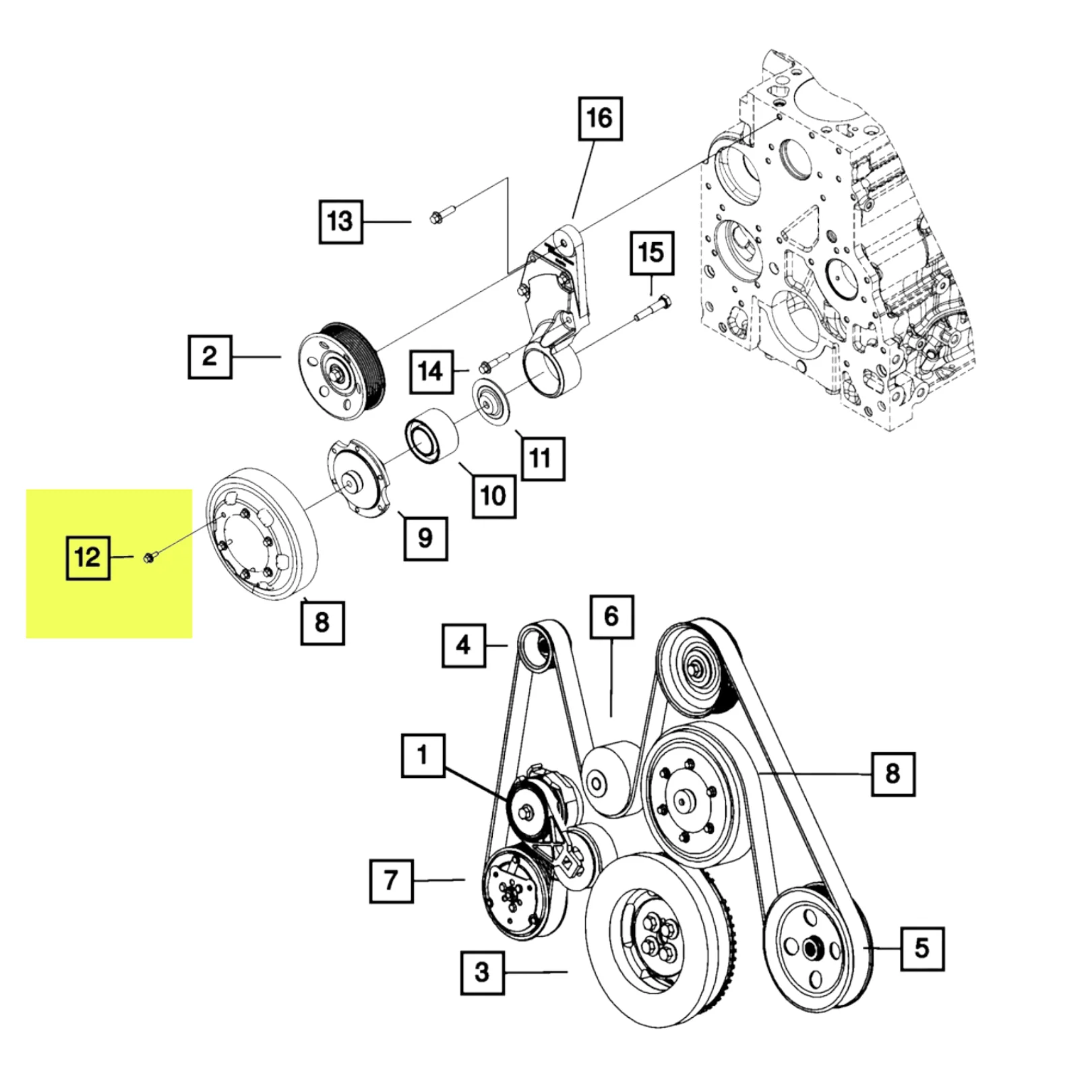

• Function: Secures the fan pulley to the front engine fan cover bracket
• Material: High-strength steel Alloy
• Finish: Zinc-coated Hexagon flange head cap screw for corrosion resistance
• Thread Size: M6 x 1.00 x 14.00
• Fastener Type: with an integrated washer-like flange for better load distribution
  Torque specifications: Vary by model year and bracket design, but they are usually between 18 and 25 ft–lbs.
• KLM Performance strongly recommends purchasing six new bolts when reinstalling or replacing the fan pulley to ensure proper clamping force and avoid fatigue failure.
• Common Uses: Mounting brackets, spacers, or structural components in Cummins diesel engines

Torque specs vary by model year and bracket design, but they are usually between 18 and 25 ft–lbs. KLM Performance strongly recommends purchasing six new bolts when reinstalling or replacing the fan pulley to ensure proper clamping force and avoid fatigue failure.

This bolt kit is primarily used in the following applications:

• To secure the air intake wiring
• Secures the fan pulley to the front engine bracket.
• The 4886003AA bolt is compatible with a wide range of Ram trucks equipped with Cummins diesel engines, spanning from the 2003 to 2025 model years.

A 12-month Cummins Warranty backs this OEM 6.7L Cummins Replacement Part!

• Engine: 6.7L Cummins
• Item Number: Cummins 5295226
• Make: Dodge
• Model : 2500 | 3500 | 4500 | 5500
• Year :  2013 | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 | 2025
• Manufacturer Part No: 5292226
• Product Application: 2003 to 2025 Ram 2500, 3500, 4500, and 5500 Series trucks with the 5.9L and 6.7L Cummins diesel engine.
• Height: 5
• Width: 10
• Brand: Cummins
• FAQ: What is the Manufacturer's Warranty on this product?
  This Cummins Replacement Cooling Fan Pulley is a genuine OEM Cummins part backed by a 12-month Cummins Warranty!
• Part Number: 5292226
• Manufacturer: OEM Cummins Replacement Part
• Product Note: This Genuine Cummins replacement provides the cooling system protection your Dodge Ram truck requires for long-term, trouble-free engine operation. Cummins parts are a non-returnable item. Please ensure you have ordered the correct part prior to placing an order for this non-returnable part..
