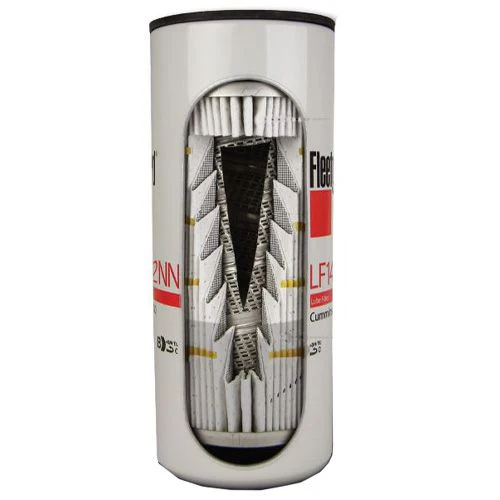

Fleetguard LF14002NN Lube Filter Spin On Nanonet

This Fleetguard Atmus Filtration LF140002NN Lube Filter Is In Stock And Ready For Immediate Shipment. In addition, these Fleetguard Cummins Filtration Nanonet Oil Filters are available with a quantity discount if you purchase three or more replacement Fleetguard lube filters or products!

The Fleetguard LF14002NN NanoNet Lubrication Filter applications:

• 2020 To Current Trucks with Cummins L9 series engines.

• 2020 To Current Buses With Cummins L9 Series engines,

This new oil filter was designed to meet every changing engine design and filtration specification in today's diesel engines. This new Cummins Filtration LF14002NN spin-on extended service interval oil filter replaces these earlier model oil filters.

• Cummins 5520789 oil filter.

Fleetguard LF14002NN Oil Filter benefits:

• NanoNet filtration media removes and retains 98.7% of all particles as small as 4 microns.
• 100% NanoNet filtration media is a synthetic, multi-layer polymer design with a robust structure.
• The oil Filter provides maximum contaminant-holding capacity throughout the filter's service life.
• The NanoNet media structure enables superior cold-flow ability.
• The Fleetguard LF14002NN Oil Filter holds 11 to 24 grams more contaminants than any competitor's oil filter.
• High cold-flow ability means less restriction and faster oil lubrication during cold start-ups, as well as lubricating and protecting the vital engine components.
• Oil Filter efficiency, capacity, and cold-flow ability are all improved.

• Provides Greater Fuel Efficiency
• Advanced Filtration Media Offers Increased Engine Protection
• Advanced Filtration Media Offers Increased Vehicle Uptime
• Provides Extended service up to 100,000 miles
• Fleetguard NanoNet Lube Filters provide Superior holding capacity and better engine better protection.
• LF14002NN Lube, Spin-On filter features use 2-in-1 NanoNet® and StrataPore® media to create a combination filter developed to meet or exceed engine requirements.

Fleetguard Cummins LF14002NN Oil Filter Specifications:

• The LF14002NN holds between 11 to 24 grams more contaminants than its competitors
• Dust Holding Capacity of 100g, 99% efficient at 30 microns, and 72% efficient at 10 microns
• Largest OD 120.3 mm (4.736 inches)
• Standpipe No
• Thread Class 2B
• Overall Height 294.69 mm (11.602 inches)
• Thread Form Standard

• Thread Class 2B
• BPV Setting No
• Overall Height  300 MM or 11.811 Inches

• Most significant O.D.     118.31 MM or 4.658 Inches
• Gasket O.D.     118.87 MM or 4.658 Inches

• Thread Pitch     12.0 threads Per Inch
• Thread Diameter     2.25 Inches

• Thread Class     2B
• Thread Form     Unified National

The Fleetguard LF14002NN Oil Filter Cross-Reference:

• Agco 72516560
• Atlas Copco  5580006641
• BMC Trucks  9P911099
• Baldwin  B40142
• Blue Bird  9424
• Bomag  31710199
• Case IH  366700A1, 441703A1, 84465096, 84485647, 8900126397, MLR2141068
• Cummins  1220856, 3401544, 5444774, 5476383, 5520789, 5586832, XLF75000, 5520789
• Cummins Power Generation  1220856
• Daewoo  47400023, 65055105023, 97400023
• Dongfeng Automobile Company  JLX350C
• Doosan  65055105023B
• Doosan  97400023
• Doosan  974000233
• Dressta  851011975
• Dynapac  4700945948, 945948
• Engine Support  ES9009
• Fiat Hitachi  76194691
• Ford  BG2X6731CA
• Furukawa  3381644H1
• Guangxi Liugong Machinery  53C0053
• Hitachi 4470720, E0A000080
• Hyster  1513759
• Hyundai 11NA70110
• Hyundai YUBP00302
• Ingersoll-Rand 22177737, 53161527, 57521098
• JCB  2910965
• John Deere AT193242, PMLF9009
• Kassbohrer 83121050030
• King Long  299006635
• Komatsu  21M0111510, 6742014540, CULF9009
• Liebherr  10015462
• Mack  5839LF9009
• Manitou  2653161527, 4136530, A104130
• Mc Cormick  707154A1
• Miller  21.41068, 2141068
• New Holland  441703A1, 73188091, 76194691, 84465096, 84485647, MLR2141068
• Orenstein & Koppel  1487676
• Ppm  V2650585
• Ppm  X6350551
• Sennebogen  157835
• Sisu 1216400561
• Solaris Bus  120390054
• Tata  220018139901
• Tec-Fil  PSL909
• Terex / Terex Advance  15500272, 6002338
• Versatile  86029587
• Volkswagen 2T0115561
• Volvo  14503824
• Volvo  22497303
• Wirtgen 195743
• Wix 51748XD
• Zhengzhou Yutong Group  101200146

The Fleetguard LF14002NN oil filter is a new and improved lubrication filter with two kinds of 100% synthetic patented oil filtration media for the most advanced oil flirtation available. In addition, the LF14002NN Lube Filter employs two different types of oil filtration media to provide unmatched oil filtration.

The StrataPore® oil filtration media removes larger suspended particles upon engine start-up for immediate protection.

The NanoNet Filtration Media removes and holds the smaller suspended particles that cause engine wear. In addition, installing the Fleetguard LF14002NN oil filter will provide you with greater fuel efficiency and increased vehicle uptime.

Cummins Filtration has developed nanofibre media for Fleetguard lube filters. Pairing NanoNet media with StrataPore® media has created a new breed of lube filter that offers higher efficiency, higher capacity, and the best cold-flow vs. restriction available. This oil filter makes the LF14002NN the natural selection for providing maximum protection for your Cummins L9 engine series.

Some other manufacturers use microglass in the composition of their media, which can degrade and migrate downstream, causing the very damage you're trying to prevent. With 100% synthetic NanoNet media engineered to last, Fleetguard filters become the superior choice, especially in challenging environments. The LF14002NN holds between 11 to 24 grams more contaminants than competitor filters.

Fleetguard LF14002NN Oil Filter is suitable for all engines that use the Cummins 5520789 oil filter.

KLM Performance offers you a quantity discount on purchases of three or more Fleetguard Filters.

• Engine Cummins L9 Series Engines
• Filter Type: Lube Filter

• Filtration Media: Nanonet and Stratapore

• Filtration Rating: Four Microns
• Item Number: LF14002NN
• Make: Cummins
• Model :
• Year: 2020 | 2021 | 2022 | 2023

• Manufacturer Part No: LF14002NN
• Product Application: 2020 to Current model Cummins L9 series engines
• Height: 12
• Width: 5
• Brand: Fleetguard - Cummins Filtration
• FAQ: What is the main advantage of using Fleetguard NanoNet filters in my Cummins engine? Fleetguard is the filter division of Cummins Filtration and Nothing Guards Like Fleetguard. The Cummins Filtration product line offers the highest quality filters specifically engineered for a wide range of filtration systems. With advanced design and high-quality performance, Fleetguard heavy-duty filters give customers the ultimate protection for their equipment. What is so unique about this Fleetguard Cummins Filtration LF14002NN Lube Filter? The LF14002NN Lube Filter contains the NanoNet® filtration media and the StrataPore® media combined to create a new lube filter offering higher efficiency and higher capacity, the best cold flow filtration versus a conventional lube filter. Fleetguard filters are designed to meet or exceed OEM specifications to ensure engines and other systems get the maximum life and the ultimate protection for all of their equipment.
• Part Number: LF14002NN
• Manufacturer: Fleetguard
• Product Note: The Fleetguard LF14002NN is now standard on all new Cummins Engines. Please ensure you have ordered the correct lube filter for your application.
