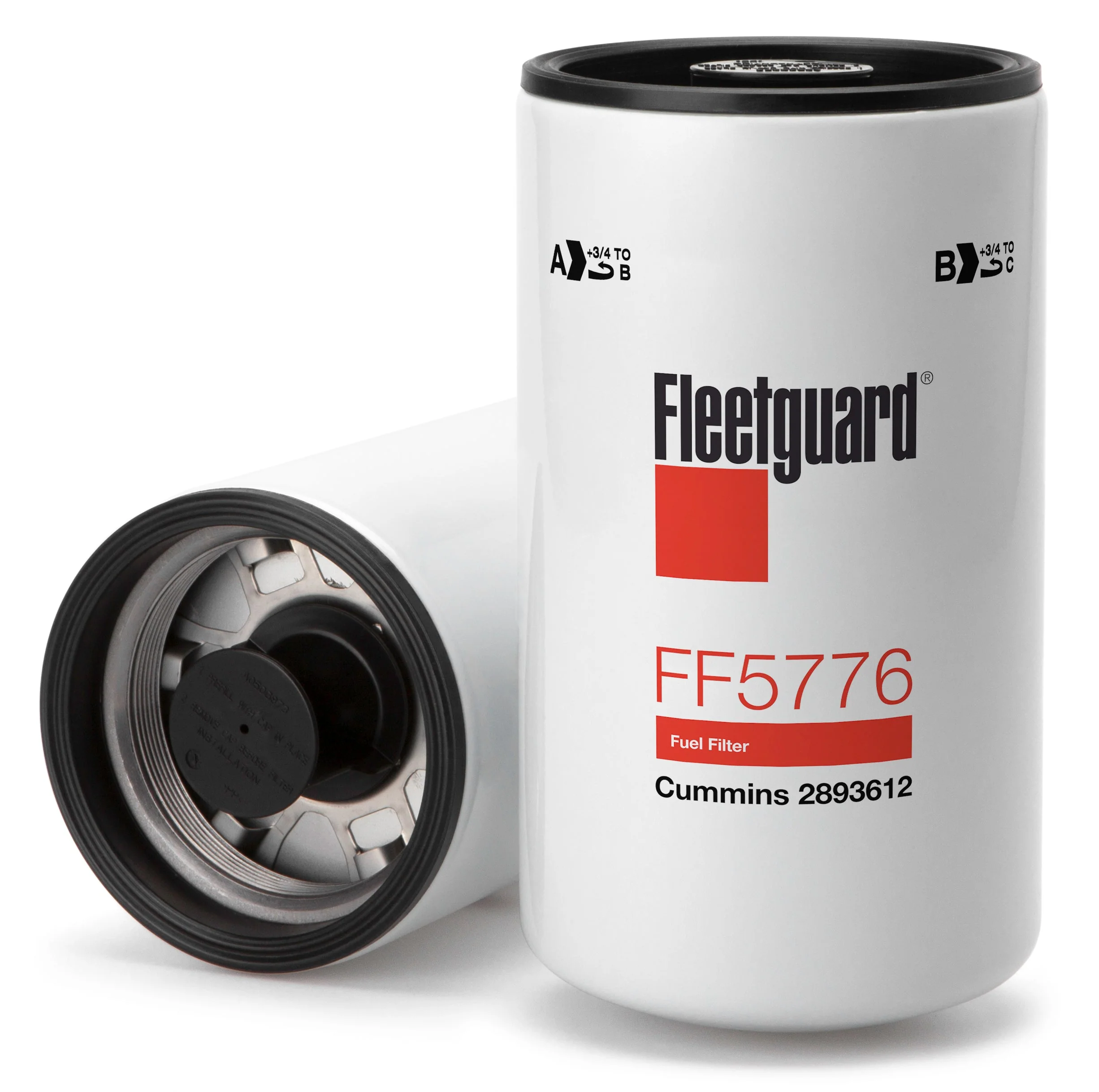

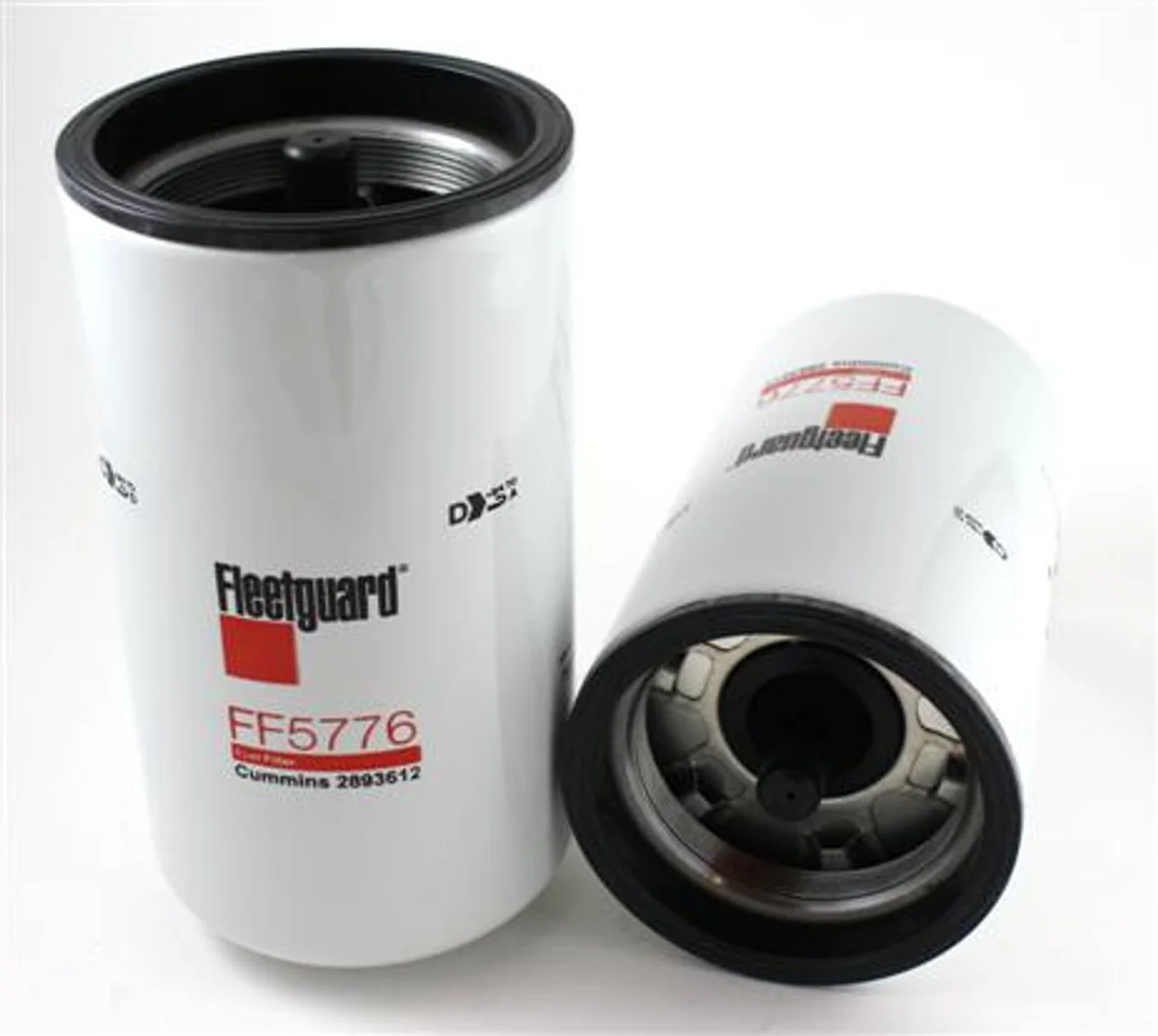

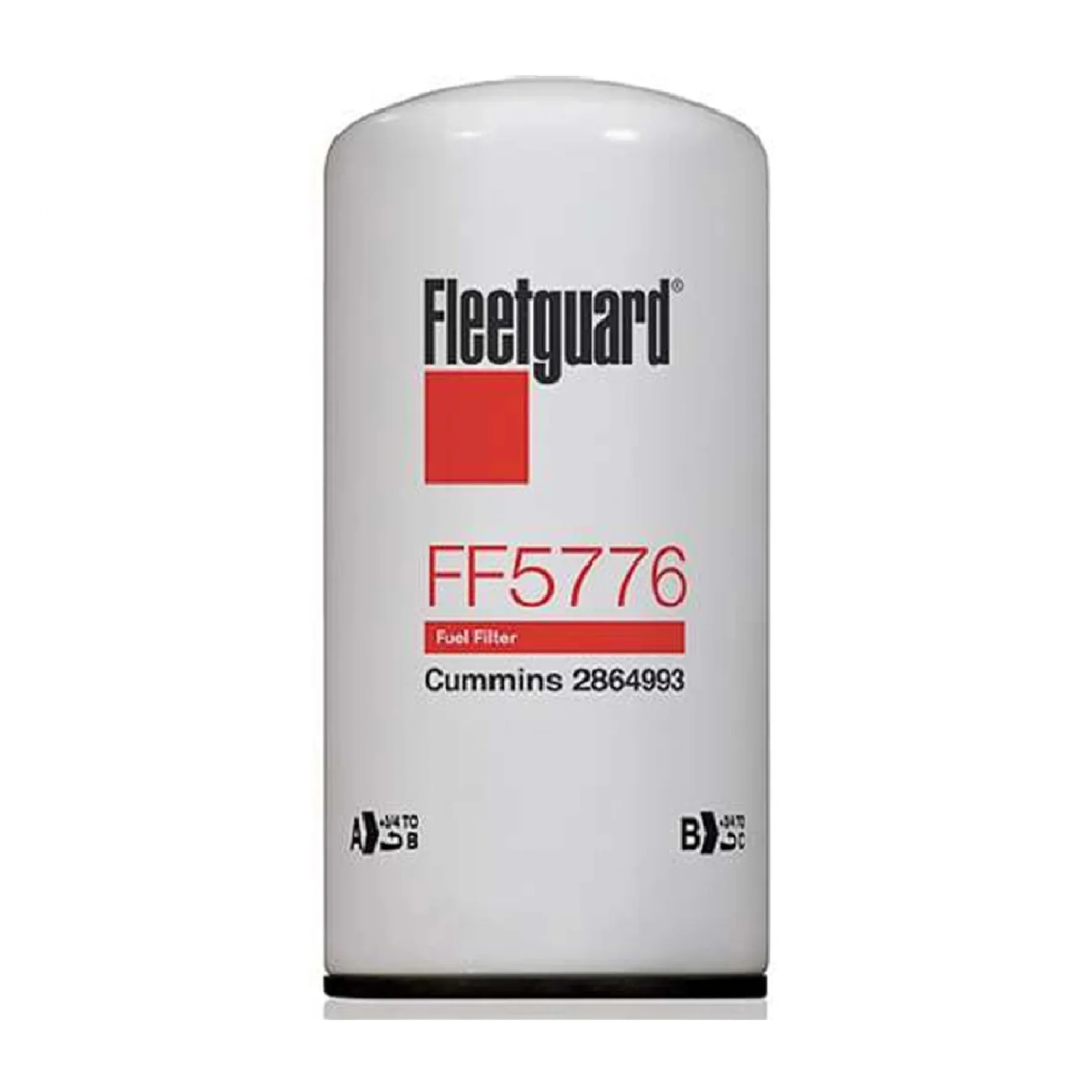

Fleetguard Cummins Filtration FF5776 Secondary Fuel Filter

Fleetguard® Cummins Filtration FF5776 spin-on fuel filter delivers superior performance using proven media technology to remove harmful contaminants before they enter your fuel injection system. Fleetguard® Cummins Filtration FF5776 spin-on fuel filter delivers superior performance using proven media technology, removing harmful contaminants. Fleetguard fuel filters ensure optimal fuel system protection to meet or exceed OEM specifications.

FF5776 Fleetguard Secondary Fuel Filter Cross Reference:

• Baldwin BF9885
• Cummins 2864993
• Cummins 2893612
• Cummins 3685306
• Cummins 4331007
• Cummins 5365988
• Donaldson P555776
• NAPA 600123
• WIX WF10123

Fleetguard FF5776 Secondary Fuel Filter Spin-On Attributes:

• Overall Height     226.52 mm (8.918 in)
• Largest O.D.    119.89 mm (4.72 in)
• Seam O.D.     119.89 mm (4.72 in)
• Gasket O.D.     118.87 mm (4.68 in)
• Gasket Inside Diameter   101.6 mm  or 4 Inches

• Thread Size     M90 X 2-7H INT
• Standpipe     NO
• EFFICIENCY, TWA BY SAE J 1985     98.7 %

• MICRON RATING BY SAE J 1985     5 microns

From the perspective of a product or industry expert, Fleetguard® FF5776 Fuel Filter utilizes proven media technology to deliver high-performance results by effectively removing harmful contaminants. Additionally, as per OEM specifications, Fleetguard fuel filters provide optimal protection for fuel injection systems.

The Fleetguard FF5776 Spin-On Fuel Filter applications:

• 2010 Plus Cummins ISX 15L Engines

• 2010 Plus Cummins ISX Engines
• 2010 Plus Cummins X15 Engines
• 2010 Plus Cummins X12 Engines
• 2011 Plus Cummins ISX11.9 Engines
• 2011 Plus Cummins QSX11.9 Engines

If you are looking for an upgraded version of this diesel fuel filter, please see the Fleetguard FF5825NN Nanonet Filter for improved duration and debris-holding capabilities:

Fleetguard FF5776Cummins Filtration Diesel Fuel Filter is a Stratapore Fuel Filter available with a quantity discount if you purchase three or more replacement fuel filters.
This Fleetguard FF5776 fuel filter uses the proprietary StrataPore™ multi-layered media to offer superior micron efficiencies, removing large particles and the smallest debris. This Fleetguard Cummins Filtration FF5776, diesel fuel filter, uses the StrataPore™ layer to provide unique properties to extend fuel filter life and improve performance. Ensuring that your diesel fuel supply is filtered correctly helps ensure Longer Life and Reduced Costs in your diesel engine's life.

The Fleetguard FF5776 Spin On fuel filter delivers superior performance using proven filtration media to ensure optimal fuel injection system performance and longevity.

• Engine: Cummins 15L ISX Engines | Cummins 12L ISX Engines | Cummins QSX

• Fuel Type: Diesel Fuel
• Filter Media: Stratapore Filtration Media

• Filter Rating: Five Micron
• Item Number: Fleetguard FF5776
• Make: Cummins
• Model: N/A
• Year: 2010 | 2011 | 2012 | 2013 | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022

• Manufacturer Part No: FF5461
• Product Application: Diesel Fuel Filter for multiple Cummins engines used in the Freightliner, International, Kenworth, Paccer Peterbuilt, Spartan Motors, Volvo and Western Star trucks.

• Height: 4
• Width: 8.19
• FAQ:
• Part Number: FF5776
• Manufacturer: Fleetguard Cummins Filtration
• Product Note: This is a Five-micron-rated diesel fuel filter with the Stratapore Filtration Media rated at 96% efficiency.
