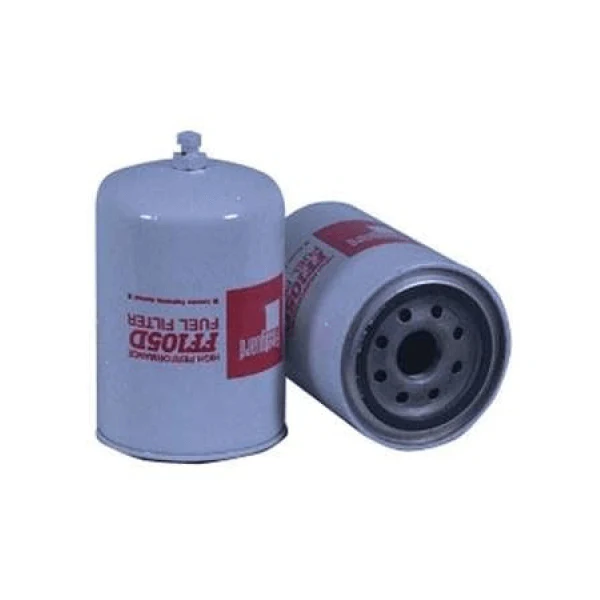

Fleetguard FF105D 20 Micron Rated Diesel Fuel Water Separator Filter With Drain Plug

The Fleetguard Diesel Fuel Filter FF105D Engine Applications:

• Cummins KTA19-G4
• Cummins KTA19-G3
• Cummins KTA19-G2
• Cummins KTA19-G1
• Cummins V-504
• Cummins NTA-855,
• Cummins KT-1150
• Cummins KTA-1150
• Cummins KTTA-19-G2
• Cummins V-378
• Cummins V-555
• Cummins NH220
• Cummins V-555
• Galion-127581

Fleetguard FF105D cross-references:

• Cummins 156172
• Cummins 202893
• Baldwin BF-957-D
• Fram P-1103
• Donaldson FFp55-0106
• Wix 33108
• Purolator 6694036

 Fleetguard Spin-On Fuel Filter FF105D

Overall Height	153.01 mm (6.024 in)
Largest Outside Diameter	92.96 mm (3.66 in)
Seam Outside Diameter	93.98 mm (3.7 in)
Gasket Outside Diameter	71.98 mm (2.834 in)
Gasket Inside Diameter	62.53 mm (2.462 in)
Thread Size	1-14 UNS-2B
Standpipe	NO
EFFICIENCY, TWA BY SAE J 1858	96 % (96 %)
EFFICIENCY, TWA BY SAE J 1985	96 % (96 %)
MICRON RATING BY SAE J 1858	20 micron
MICRON RATING BY SAE J 1985	20 micron



The Fleetguard FF105D spin on diesel fuel filter with drain is used with the Cummins 142784S filter head. This Cummins Filtration Fleetguard diesel fuel filter is an extended life version of the Fleetguard FF105D water separator filter.

• For the best engine performance possible, remember to change your FF105D filter at regular intervals.

• Fleetguard FF105D Fuel Filter change intervals are based upon your engine operating environment and fuel quality.

• A bad load of fuel will require an immediate fuel filter change.

• The regular draining of this filter will help to maximize filter life.

• KLM Performance recommends that you keep a spare FF105D Filter available at all times.

• Engine: Cummins
• Fuel Type: Diesel Fuel
• Filter Type: Diesel Fuel Water Separator Filter
• Flow Rate: 89.83 Gallons Per Hour
• Filtration Level: Twenty Microns
• Item Number: Fleetguard FF105D
• Make: Cummins
• Model: Diesel
• Manufacturer Part No: FF105D
• Product Application: Cummins Diesel Engines Used For Power Generation, Agriculture, and Construction Equipment
• Height: 4
• Width: 8
• Brand: Fleetguard Atmus Filtration Technologies
• FAQ: Does this diesel fuel water separator filter contain a drain valve? Yes, the Fleetguard FF105D Spin On Diesel Fuel Filter does contain an integrated drain valve.
• Part Number: FF105D
• Manufacturer: Fleetguard Atmus Filtration Technologies

• Product Note: The regular draining of the Spin-On Diesel Fuel Filter will help promote trouble-free diesel engine operations, as the removal of the captured water is vital to optimum engine operation.
