ARP Ford 6.7L Powerstroke Diesel Harmonic Balancer Bolt Kit

Ensure the secure attachment of your Ford 6.7L diesel engine crankshaft balancer with the ARP 150-2504 Harmonic Balancer Bolt Kit. This high-quality automotive part from Automotive Racing Products is specifically designed for your application.

This ARP Harmonic Damper Bolt Kit is designed for the following Ford Powerstroke engines.

2011 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.
2012 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.
2013 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.
2014 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.
2015 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.
2016 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.
2017 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.
2018 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.
2019 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.
2020 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.
2021 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.
2022 Ford F250, F350, F450, and F550 with the 6.7L Powerstroke turbo diesel.

KLM Performance strongly recommends using this Harmonic Balancer Bolt Kit when installing a new Fluidampr 800221 Ford 6.7L Powerstroke Fluidampr Harmonic Fluid Damper.

As the crankshaft in your Ford Powerstroke flexes and twists, the harmonic balancer absorbs incredible amounts of kinetic energy. To ensure that the balancer is locked in position, ARP has developed these ultra-strong 200,000 psi bolts that let you exert maximum clamping force.

Ford Powerstroke Diesel Harmonic Balancer Bolt Kit Features:

1/4" thick stud
Wide area washer
Extra tall 12-point bolt head.
It accepts a deep socket and eliminates the worry of stripping the head.
Bolts and washers are rated to a 200,000 PSI tensile strength.

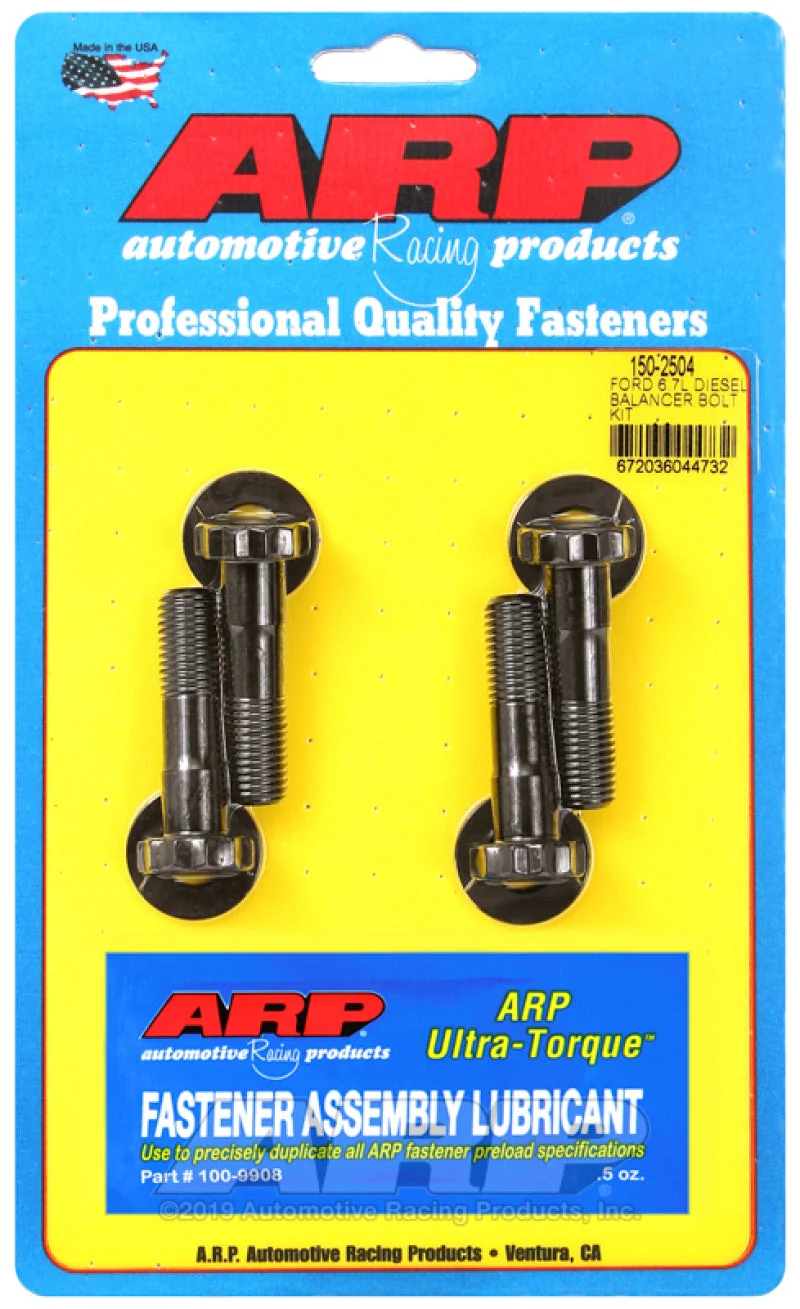

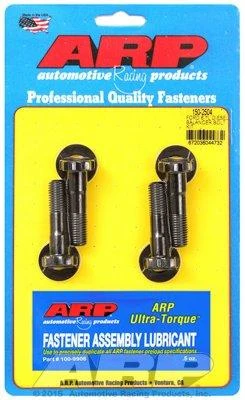

The ARP Ford 6.7L Powerstroke Crankshaft Balancer Bolt Kit includes the following:

Four M12 x 1.25 8740 Pro Series balancer bolts.
Four 8740 parallel-ground washers.
One 1/2 ounce packet of the ARP Ultra-Torque fastener

ARP Ford 6.7L Powerstroke Diesel Harmonic Damper Bolt Kit is MADE IN THE USA!

Engine : 6.7L Powerstroke
Item Number: 150-2504
Make: Ford
Model : F250 | F350 | F450 | F550
Year : 2011 | 2012 | 2013 | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022
Manufacturer Part No: ARP 150-2504
Product Application: 2011 to 2022 Ford F-250, F-350, F-450, and F-550 with the 6.7L Powerstroke Diesels.
Height: 10
Width: 10
Brand: Automotive Racing Products - ARP
FAQ: How Do I Install This ARP 150-2504 Ford 6.7L Powerstroke Diesel Harmonic Balancer Bolt Kit?
The ARP 150-2504 Ford 6.7L Powerstroke Harmonic Balancer Bolt Kit requires the following steps be taken to ensure the correct installation of your crankshaft balancer:
#1 Please verify the part number for your application against the part number listed on the instruction sheet.
#2 Clean and inspect all of the hardware prior to installation. Look for obvious defects or shipping damages, plus proper fit, length, and dimension.
#3 To ensure proper thread engagement and accurate torque readings, clean the threads at the end of the crankshaft. Chase if necessary with a Thread Chaser or Tap.
#4 Lubricate the threads of the bolts, the under-head of the bolts, and the front face of the balancer where the washers contact the balancer with the included packet of ARP ULTRA-TORQUE FASTENER ASSEMBLY LUBRICANT.
#5 Install the washers onto the bolts with the chamfered side facing the bolt head, then install the bolts hand-tight.
#6 Tighten the balancer bolts to 90 ft-lbs using ARP ULTRA TORQUE FASTENER ASSEMBLY LUBRICANT.
If you have any questions or need additional information, don't hesitate to get in touch with us at 203-210-7200.
Part Number: 150-2504
Manufacturer: ARP - Automotive Racing Products
Product Note: The purchase of the ARP 150-2504 Ford 6.7L Powerstroke Diesel Harmonic Balancer Bolt Kit will ensure your harmonic damper will be securely attached to the crankshaft of your engine. Please ensure that you have ordered the correct ARP product for your intended application.

ARP Ford Powerstroke Harmonic Balancer Bolt Kit

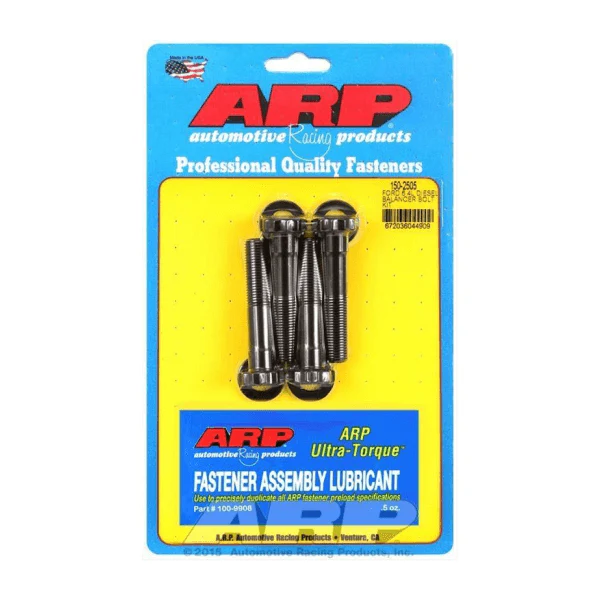

ARP 150-2505 Ford 6.0L & 6.4L Powerstroke Diesel Harmonic Balancer Bolt Kit
